<< Click to Display Table of Contents >> Navigation:  Analytics > Server Analytics > Adding an Analytics Configuration > How To Configure Basic Analytics > Foreign Objects

The Left Objects module can generate alerts when an object is left in a specific area of ​​the image or when something in the scene is changed. Example: A suitcase left on the floor, a key that appears on top of a table. From these events it is possible to recover the video, generate alarms and reports.



The analytical modules were made to help with monitoring and are not completely accurate, for example: the left objects module can trigger alarms with changes in lighting, projected shadows, etc., generating what is called a false alarm.

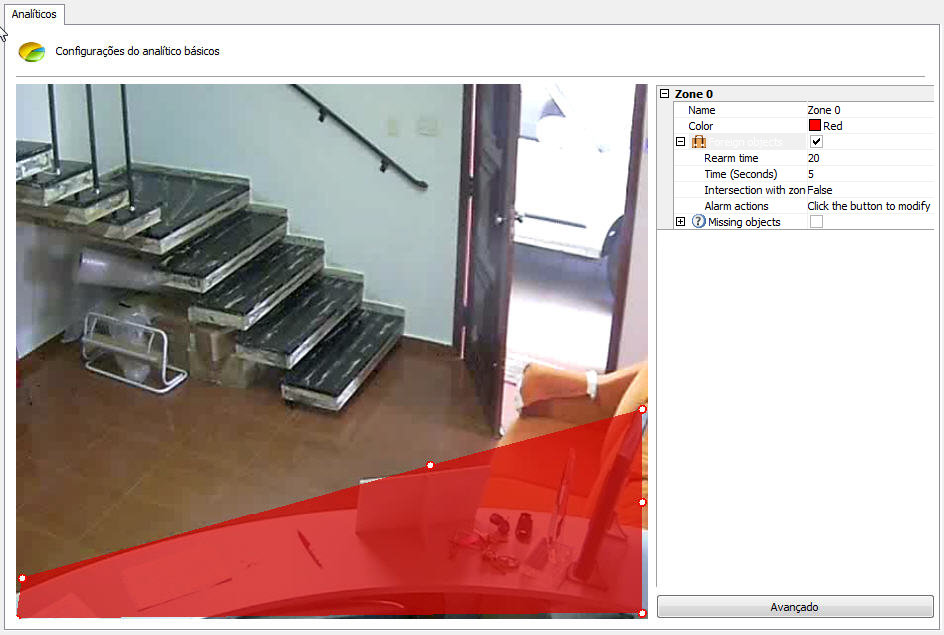

In our example, a detection zone was created for the table as shown in the figure below:





Opening the left side options of Foreign Objects we have the following functionalities:



•Foreign Objects: Check this option to activate Foreign Objects in this zone.

•Rearm time: Rearm time for the alarm to be activated again in the Surveillance Client (if configured).

•Intersection with the zone: If false, only objects that have their center inside the zone will be fired. If true, any object intersecting the zone can trigger the alarm.

•Time: Time in seconds that the object must remain stationary in the zone for the alarm to be triggered. Long times are not recommended in places with a lot of movement.

•Alarm Actions: Click on the alarm actions line and then on the button with 3 dots as shown in the figure below:





On the alarms screen, configure the desired actions when the analytics trigger events. To learn more about alarm actions see chapter How to configure event actions .



Here is an example where the alarm was triggered in the previously configured situation:





Every time an alarm is triggered the scenario is automatically relearned.



To learn how to generate reports, consult the Surveillance Client manual.
