This action allows the system to create a bookmark whenever a certain event occurs, easily identifying them in the recordings.

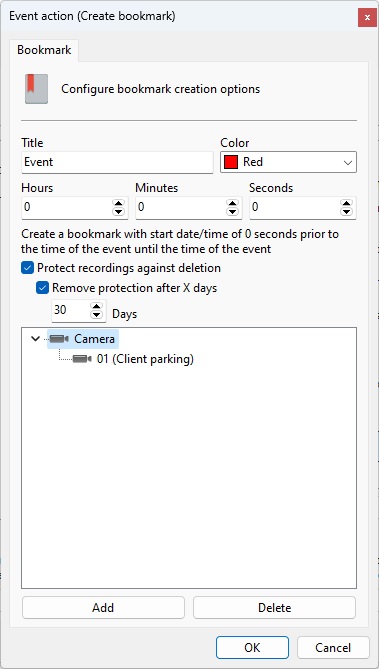

On the configuration screen, the following options are available:
•Title: Title that will be used for the Bookmark
•Color: Color used by the bookmark
•Hours, Minutes and Seconds: Select the duration of the bookmark. This way the bookmark will have a start and an end marking. The bookmark start time will be the selected time before the event occurred and will end at the time the event was triggered. If the configuration is left to zero, a simple bookmark will be created.
•Protect recordings against deletion: If your edition has the Recording Protection feature, this option will create a Recording Protection record for the bookmark's time, protecting the period of video marked by the bookmark against deletion.
oRemove protection after X days: Configures the system to delete the created protection automatically after X configured days.
•Camera: Select one or more cameras where this bookmark should be created.
•Add Button: Add a camera to the camera list to create the bookmark
•Delete Button: Remove the selected camera from the list
To learn more about Bookmark, consult the Surveillance Client manual.
|
|---|
To create a bookmark with an end date after the event, instead of creating the bookmark action directly in the event, first create a Timer event that will fire X seconds after the event and then configure the bookmark in the Timer event, thus the end time of the bookmark will coincide with the timer trigger time. |
