The Speed ​​Filter rule can trigger alarms if it detects objects at configured speeds.

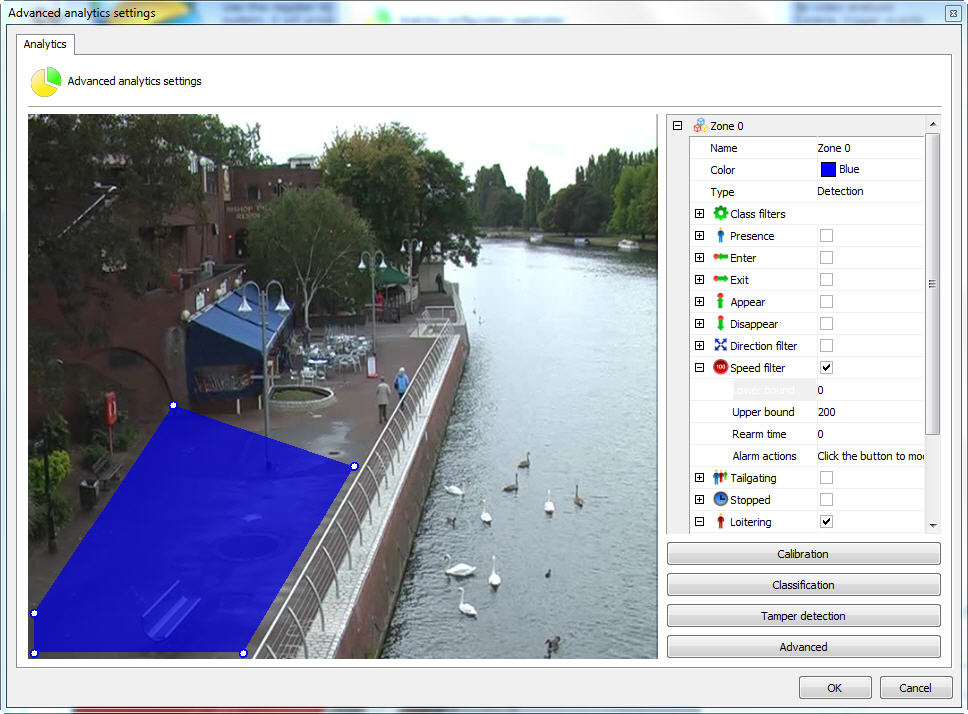

Let's configure a Speed ​​Filter alarm from a zone. In the figure below, a zone was created in the previously calibrated image:





With the zone selected select the Speed F​filter rule. The options for this rule are as follows:



•Minimum and Maximum Speed: Set the minimum and maximum speed values. The event will be triggered if the object's speed is between the minimum and maximum values.

•RearmTime: Time in which the alarm actions will be reactivated after an execution.

•Alarm actions: Click on the alarm actions line and then on the button with 3 dots as shown in the figure below:





On the alarms screen, configure the desired actions when the analytics trigger events. To learn more about alarm actions see chapter How to configure alarm actions.
