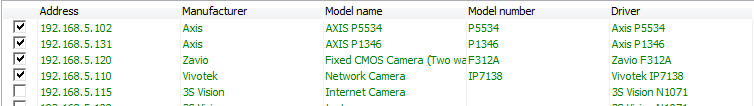

This feature can register several cameras at the same time with sequential numbers. To start, select several devices using the selection box as shown in the figure below:

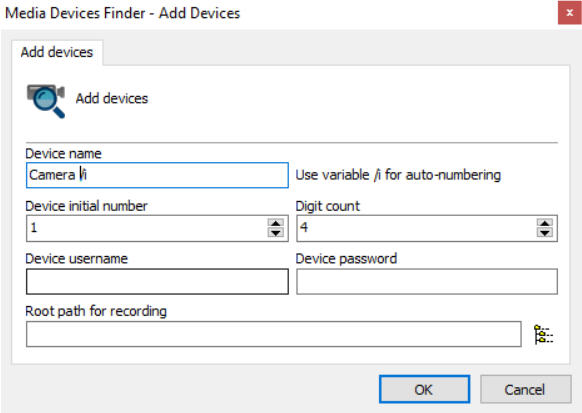

After selecting the equipment, click the Add Selected Equipment button and the following screen will appear:
The information provided on this screen will be applied to all cameras to be registered:
•Device Name: Allows you to name one or more cameras. To add the numbering after the initial name, simply place the key "/i" in the text.
•Device Initial Number: The name of the cameras will be registered in the form of a sequence of numbers. In this field, the initial number from which the count will begin is defined.
•Digit Count: Number of desired houses. Ex: If the count starts with the number 1 and the number of decimal places is 4, then the name of the first registered camera will be 0001.
•Device Username: User that will be used for the server to authenticate to the devices.
•Device Password: Senha que será usado para o servidor autenticar-se nos dispositivos.
•Recording Root Directory: Enter a directory where the system will create a folder for each camera where your recordings will be stored. This folder will have the same name as the camera (Ex: 0001, 0002, etc.).
After registering the various cameras, their respective status will automatically change to BLUE (Camera already registered). This way, the cameras were successfully registered as shown in the image below:
