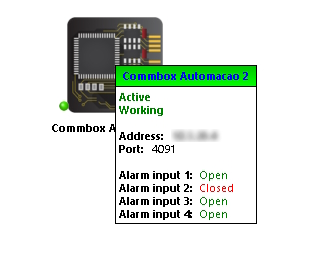

Positioning the mouse over the icon of an IO device will display a brief report about the device, as shown in the figure below.
The dialog box will display:
•Title with name and status: The name of the device will be displayed in the title, which will be colored green if the device is working or red if it is not working.
•Activation status: Indicates whether the device is activated or deactivated.
•Working status: Text status indicating whether the device is working.
•Restricted fields: The following fields are only available if the user has IO device status viewing rights.
oAddress: IP address of the device.
oPort: Communication port.
oAlarm Input: Status of the device's IO Input ports.
