The Event Variables feature allows the use of dynamic variable values within event actions.
The Event Variable value can be accessed by referencing the variable name using a variable name identifier: $(VARIABLE_NAME)
Each system event introduces different types of variables whose values can be used in event actions.
•The following event actions support the use of variables:
•Send Email
•Send Message to Operator
•Send a Push Notification
•Send HTTP Request
•Create Bookmark

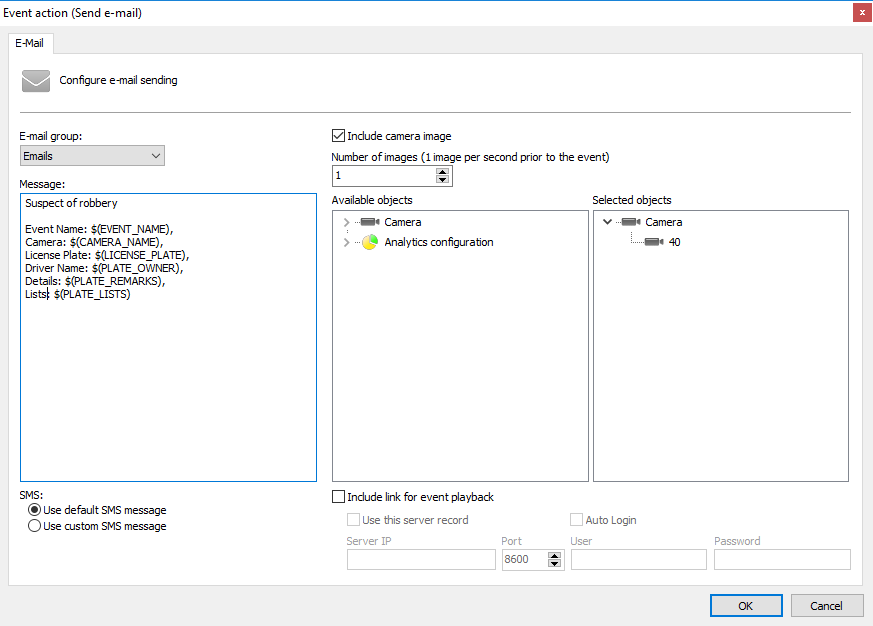

In the example below, an email will be automatically sent with specific data from the LPR event that includes the license plate number and the driver's name if the recognized license plate is marked as stolen:
The same can be configured for messages sent to system operators, adding precious information in the alarm popup:

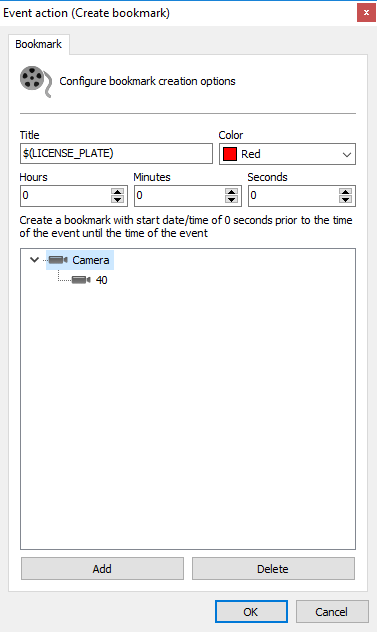

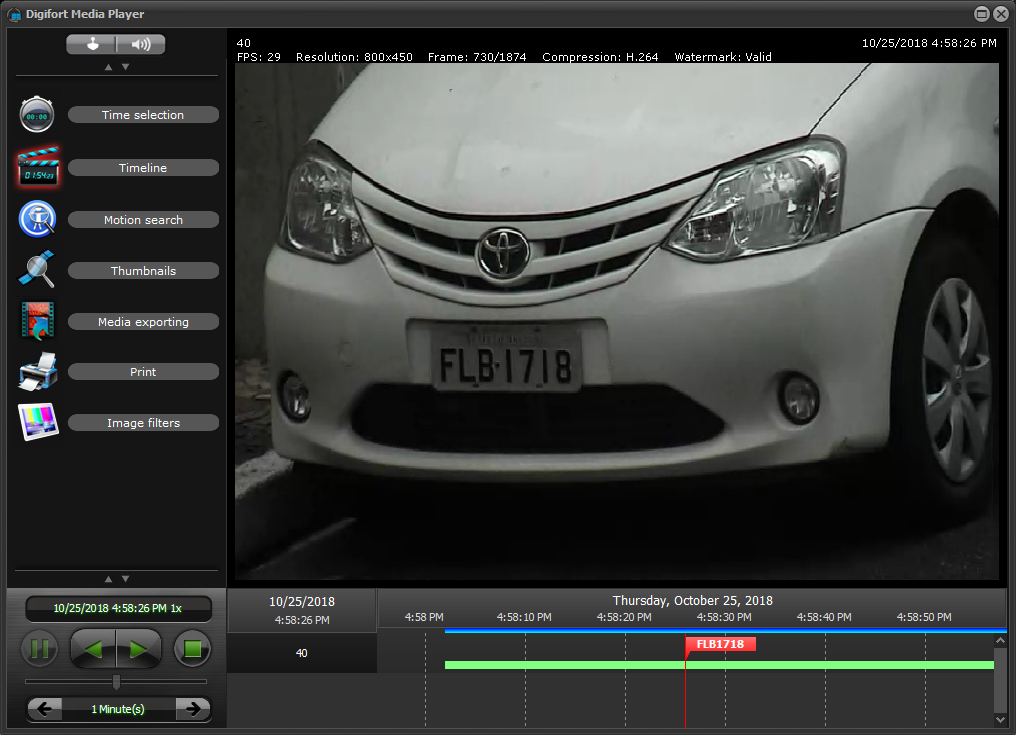

In the following example, we can create a bookmark with the value of the recognized license plate, which will be displayed in the video player:
To receive the complete document with all system event variables, please contact our support team.
