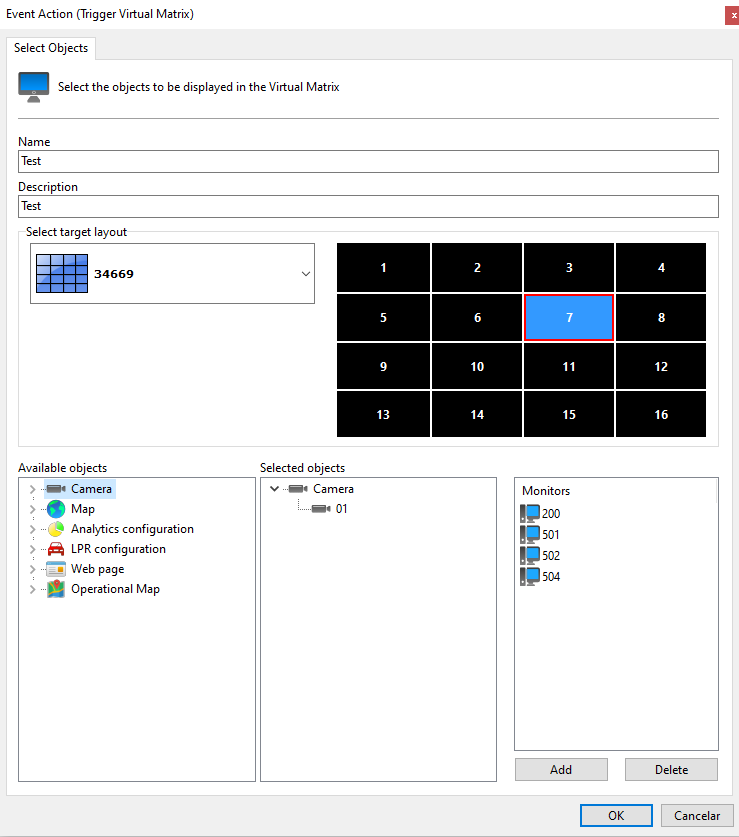

In the action for single objects, it is possible to select the layout to be used and in which position of the layout the object will appear, check out the image below:
In the example above we will have camera 01 being sent using layout 34669 in position 7 for monitors 200, 501, 502 and 504.
•Name: Specify a name for this action
•Description: Specify a description for this action
•Layout: Specify the desired tile layout. After selecting the desired layout, select the tile where you want the object to be displayed. If the layout is the same as the one already loaded on the target monitors, the Surveillance Client will not remove the current objects and will only replace the desired object in the selected tile.
•Available objects: List of available objects to select for sending to the Virtual Matrix
•Selected Object: Drag 1 object from the list of available objects to the selected object list to specify which object will be sent to the Virtual Matrix. Only 1 object can be selected
•Monitors: List of Virtual Matrix monitors to which the system will send the selected object. Click the Add button to add monitors or the Delete button to delete selected monitors.
