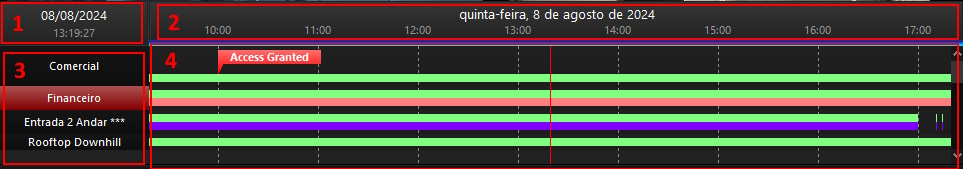

The timeline control interface is divided into 4 panels:
1.Current date and time of media playback.
2.Timeline time division panel: This panel displays the date and time corresponding to the timelines. The time division can be changed with the timeline zoom function.
3.Camera panel: This panel displays a line for each camera in the Media Player. Here you can select cameras (camera selection is used for features such as export and motion search) and the timeline search and motion search progress bars are also displayed.
a.Blue progress bar: Represents progress towards finishing the timeline search.
b.Red progress bar: Represents the progress of the Motion Search.
4.Timeline panel: This panel displays the timeline information for each recording track:
a.Green line: Video recording.
b.Orange line: Audio recording.
c.Purple line: Metadata recording.
d.Yellow line: Event recording. Motion / event metadata recording must be activated on the camera.
e.Motion line: This line is defined by the intensity of the motion detected and will vary in shades of red. Darker red indicates greater movement and lighter red indicates less movement. Motion / event metadata recording must be activated on the camera.
f.Motion search line: This line will contain a motion intensity graph, produced by the Motion Search feature.
g.Bookmarks: Bookmarks will be displayed in a line indicating the time of the bookmark and the title of the bookmark.
