The LPR record search screen allows you to save or print reports from the results of the current search.

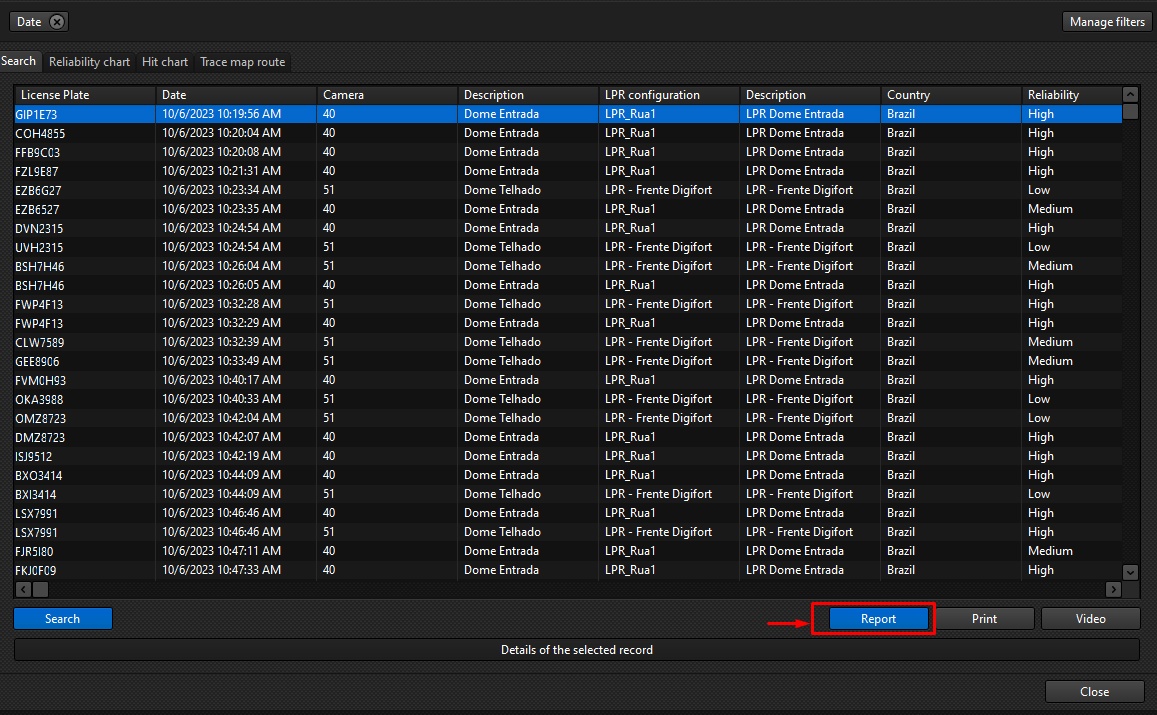

After searching for the license plates of interest, click on the Report button.
A pop-up will open with the title of the report configuration.

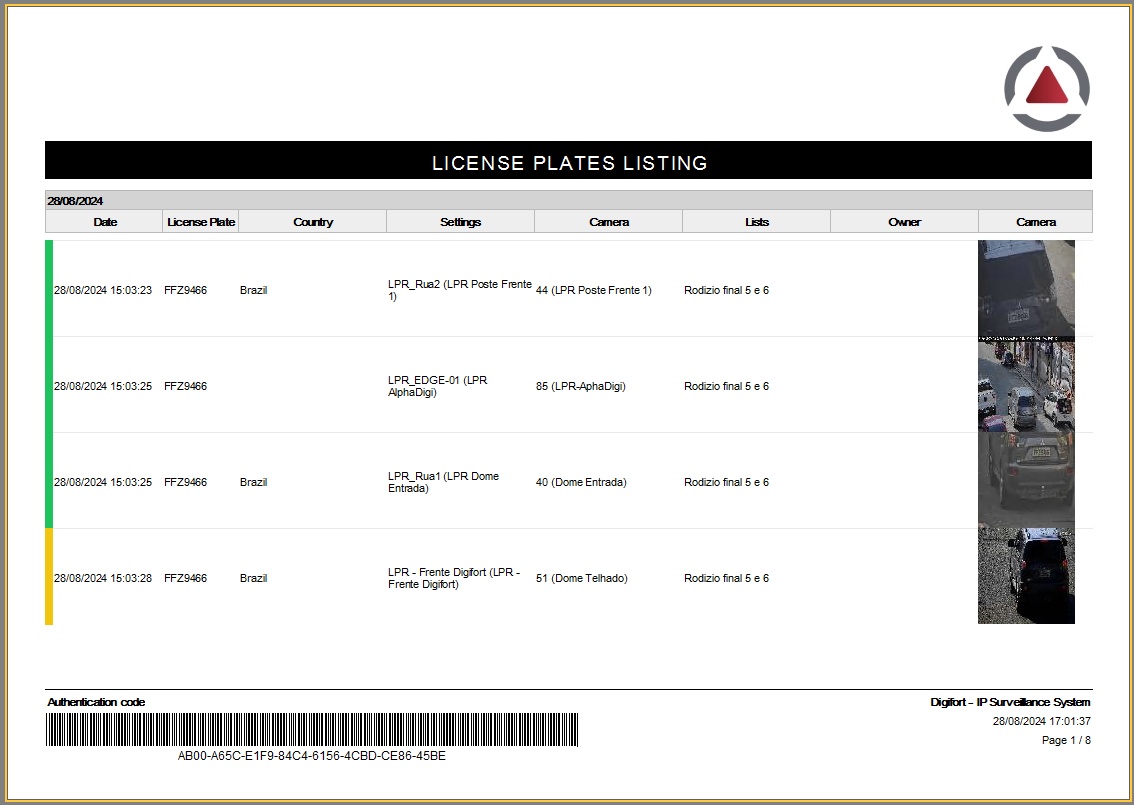

•Layout 1: Layout in list format, with the possibility of adding a photo of the capture.
oDisplay camera image: Displays the capture snapshot in the report

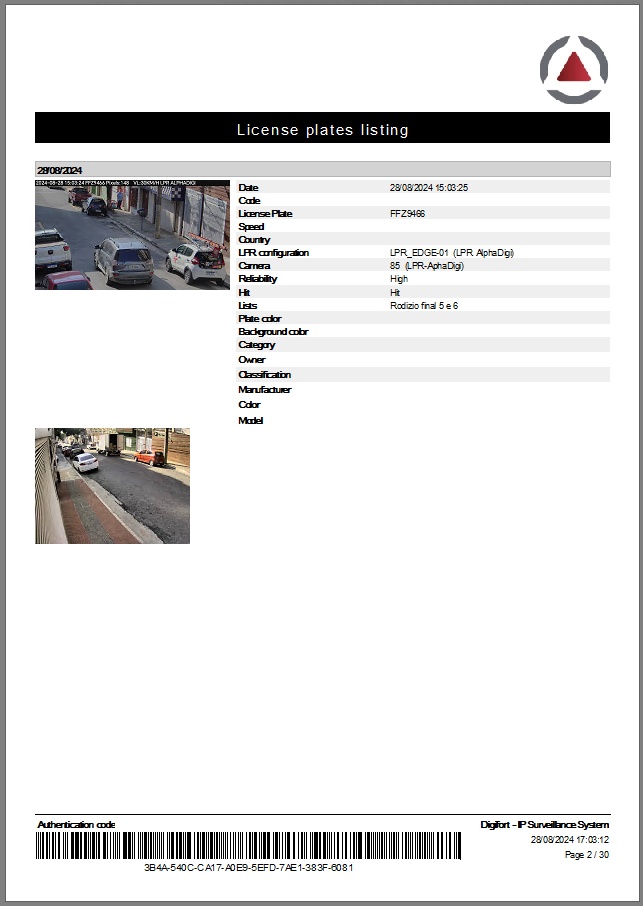

•Layout 2: Layout in single page format, where each capture will be added to a full page of the report, including the image of the capture and with the option to add an image of the surrounding cameras.
oDisplay image of surrounding cameras: Display the snapshot of the surrounding cameras in the report.
•Show license plate cutout: Displays the license plate image cutout in the report.
•Include Reliability Chart: Include the reliability chart at the end of the report.
•Include Hit Chart: Includes the hit chart at the end of the report.
Select the type of record grouping. Records can be grouped using different options. Select the most appropriate options for your report and click OK.
Now select the format and whether you want to view only, print or export (*.pdf, or *.html) and click OK and the standard report viewer will be displayed:
