To access the RTSP Server settings, expand the RTSP Server icon, located in the Settings Menu and select the Settings icon as shown in the figure below:

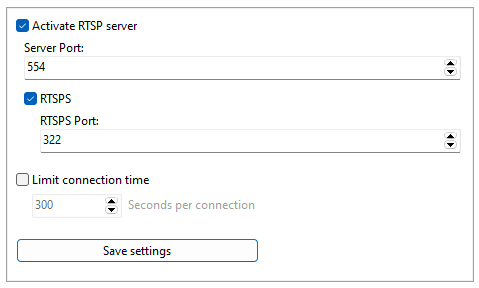

The settings screen below will be displayed:
•Activate the RTSP server: Enables or disables the RTSP Server.
oServer Port: Port used to access the RTSP Server. The default RTSP port is 554.
oRTSPS: Enables or disables RTSPS (RTSP over SSL).
▪RTSPS Port: Connection port for RTSPS. The default RTSPS port is 322.
•Connection Time Limit: Option to configure a maximum time limit for which each connection can remain open.
•Save Settings: Saves the options configured on the screen.
