Using the multi-streaming system, the recording profile can be changed dynamically upon motion or by event, which allows the system to be configured to record continuously with a standard profile and when there is motion or event the profile will be automatically changed to another profile (For example, with higher resolution and frame rate). This configuration allows greater flexibility for those who want to save on image storage.

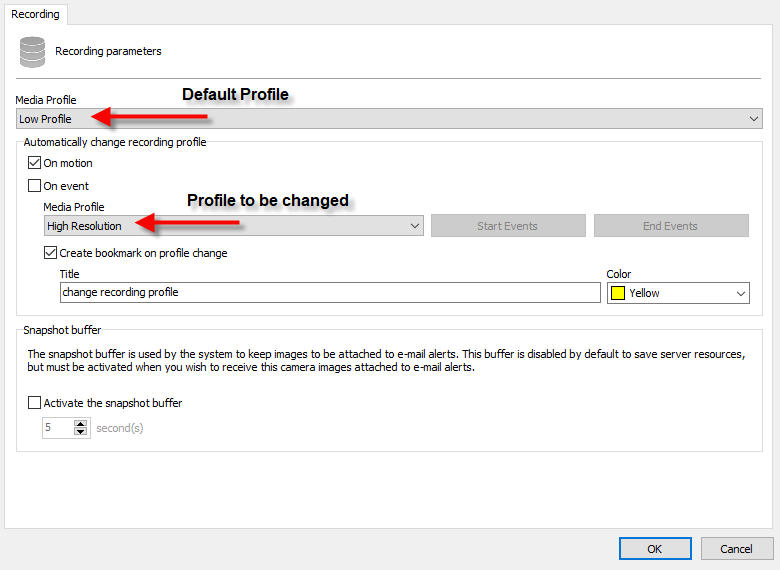

To configure profile switching for movement, select the On Motion option and select the profile that the system should record during movement.

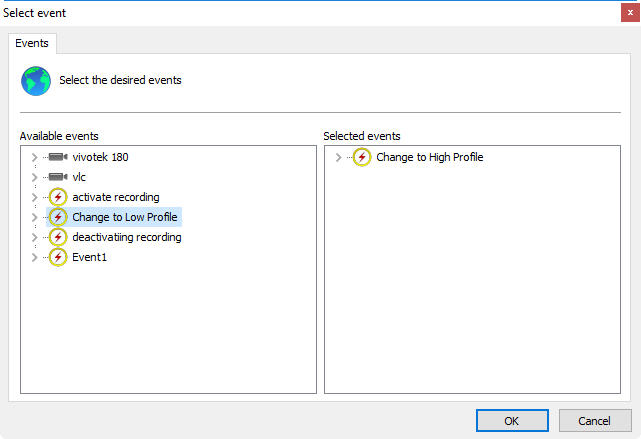

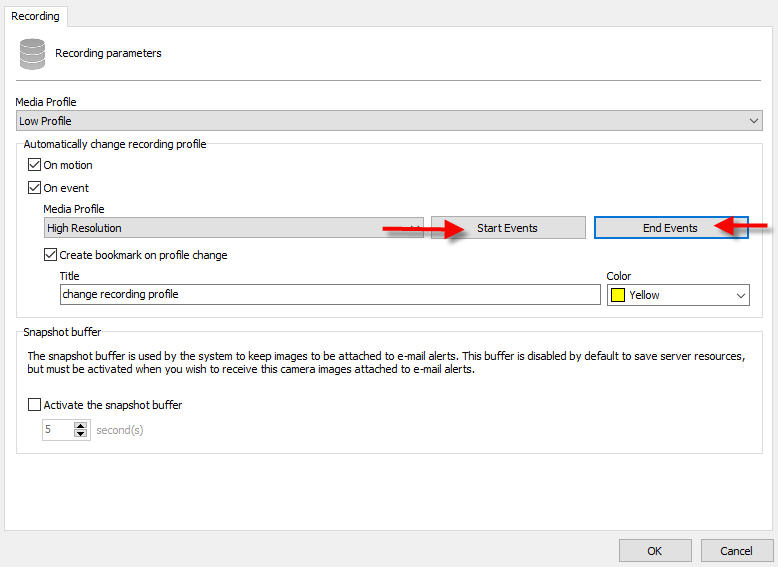

To configure profile switching per event, select the On Event option, select the profile that the system will record during the event and select the start and end events. When a start event is triggered, the system will switch the recording to the selected profile and when an end event is triggered, the system will return the recording to the default recording profile.
It is possible to select any event available in system (I/O, Global Events, Analytics, etc.) for the profile switch.
|
|---|
You should always choose start and end events. If an end event is not selected, the system may constantly record with the event profile and never return recording to the default profile. |
|
|---|
If you are using an event that does not have an end (For example, a global event), you can create a timer in the actions of this event (Which will fire X seconds after the event has been triggered) and use this timer as an end event |
