In this area of the system you can check the general status of all cameras registered in the system.
To access this function, select the Status item within Recording Server in the Settings Menu, as illustrated in the figure below:
The status screen allows the selection of custom columns with new information to be displayed in the list (By right-clicking on the list header) and ordering by any column in the list and it is also possible to export the current data to a .CSV file.

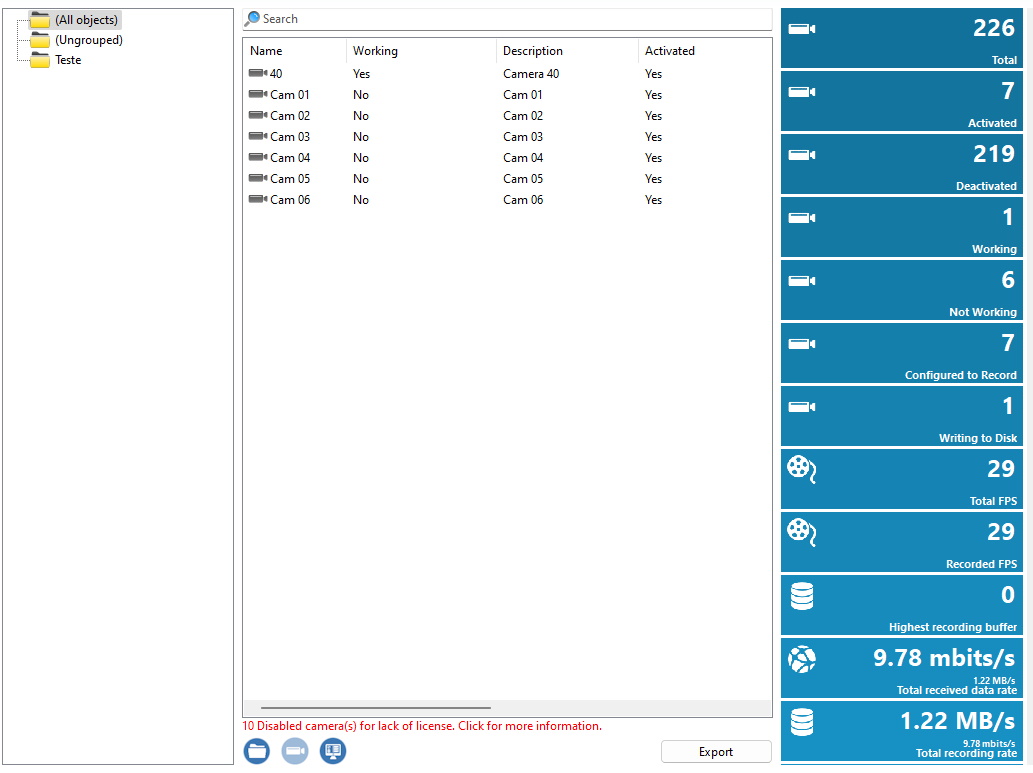

This screen has a list of cameras with information about each camera and a dashboard next to the list, with information summarized for all cameras.
With the Camera Groups feature, when selecting a group (or multiple groups), the records will be filtered to display only cameras from the selected groups.
Details:
•Total: Total number of cameras registered on the server.
•Activated: Number of activated cameras.
•Deactivated: Number of cameras disabled.
•Working: Number of cameras in operation.
•Not Working: Number of cameras currently out of operation.
•Configured to Record: Number of cameras that are configured to record.
•Writing to Disk: Number of cameras that are currently writing to disk. This value may vary if cameras are recording by event or movement.
•Total FPS: Total number of Frames per Second being transmitted to the server.
•Recorded FPS: Number of Frames per Second being recorded on the server.
•Larger recording buffer: The longest recording buffer time among server cameras.
•Total received data rate: Amount of data received by the server over the network.
•Total recording rate: Amount of data being written to disks per second.
•Disks: A summary of free and occupied disk space on each disk in use (Each disk will have an item on the dashboard).
The system may also display a warning regarding objects deactivated due to a lack of available licenses:
