How To Extract The .c2v File To Request The License

Open Command Prompt with administrator rights (The process must be done with administrator rights, otherwise the generated file will be invalid):



LPRServer_Licensing_NeuralLabs_CMD



Go to the "neuralkey.exe" executable directory in the command prompt. "neuralkey.exe" is located within the "LPREngines\NeuralLabs\Utils\HASP drivers" subfolders that are located within the LPR server installation folder.



Writing the command cd <directory>, it usually looks similar to this:



cd "C:\Program Files (x86)\Digifort\Digifort LPR Server 7.4.0\LPREngines\NeuralLabs\Utils\HASP drivers":



LPRServer_Licensing_NeuralLabs_Folder

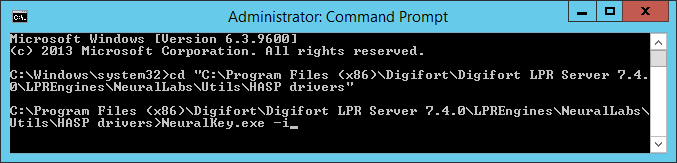

Now run the command "Neuralkey.exe -i".



LPRServer_Licensing_NeuralLabs_NeuralKey



Wait for it to load and this message should appear:



LPRServer_Licensing_NeuralLabs_NeuralKeyOK



Once this is done, open the "NEURALRUS.exe" application, which is located in the same directory:



LPRServer_Licensing_NeuralLabs_NeuralRus

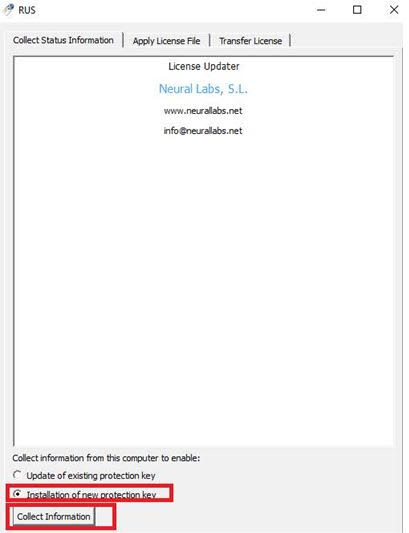

The following application will be displayed:



LPRServer_Licensing_NeuralLabs_NeuralRusApp



In this same tab, if it is the first request, select the second option Installation of new protection key and then click on Collect Information and a .c2v file will be generated.



Save the c2v extension file and send it to our support team, along with the following completed questionnaire:



1.Project name or reference

2.Name of end or reference customer



If this is a demo license request, please answer the following additional questions:



3.Countries - Target

4.Number of Cameras involved in this project

5.Number of Cores to License

6.Demo Time: 30 or 60 days

7.Will this be a demo extension (Yes / No)
