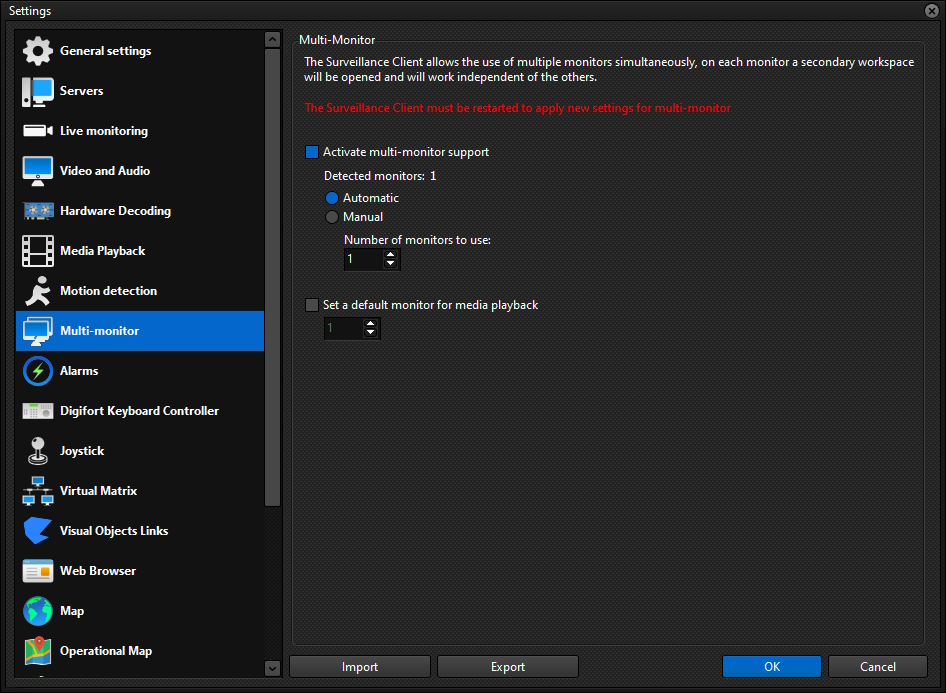

The system has the ability to use several monitors interconnected in a single surveillance station, creating an individual monitoring screen on each monitor where it is possible, for example, to display a monitoring view on one of the monitors, and a single camera on the others. In this way, by adding several video outputs, the Surveillance Client will work as an image decoder and multiplexer for as many cameras as necessary.
•Enable multi-monitor support: Enables multi monitor support.
•Monitors detected: Number of monitors detected on your workstation.
•Operation mode:
oAutomatic: Automatically opens a monitoring screen on each recognized monitor.
oManual: Choose the number of monitoring screens to open. You must manually position the screens on each monitor. The system will save the screen position and position the screens automatically the next time it is opened.
▪Total monitors to use: Select the number of monitors to use in manual mode.
•Set a default monitor for the Media Player: Defines which monitor the system media player will appear on when opened.
