The first step in configuring a Mobile Camera server is to add it to the list of servers to be managed by the Administration Client.

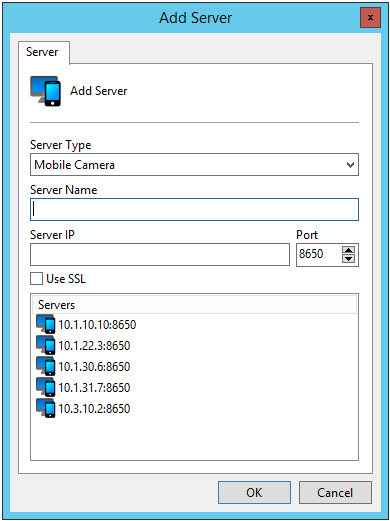

To add a server, click on the Mobile Camera Servers tree and then on the Add Server button, opening the server registration screen, as shown below:
•Server Name: Enter the name of the server to be added. Once the data has been confirmed, the server name cannot be changed.
•Server IP: Enter the IP of the server to be managed.
•Port: Enter the port used to communicate with the server. By default the port is 8650 or 8450 for secure connection with SSL/TLS
•Use SSL: Use secure connection with SSL/TLS. Don't forget to specify the SSL/TLS connection port.
•Servers: This list shows all the Mobile Camera servers that the administration client has found on the network. By clicking on one of the servers, the IP and Port fields described above will be automatically filled in, and all that remains is to fill in the Server Name field to complete the registration.
After entering all the data correctly, click OK.
Once the server has been added, it will be displayed in the Settings Menu, as shown in the figure below:
To change the parameters of an already saved server, right-click on the desired server and then click on Change Parameters. In the window that opens, change the data as necessary and click OK.
To delete a server, right-click on the desired server and then click Delete Server. In the confirmation message that appears, click Yes.
