The Configurations tab provides details about active configurations.
In this list you can check the current status of the activated settings and you can add columns with extra information by right-clicking on a column and selecting the Select Columns option.
By double-clicking on a setting, you will have detailed information about how it works:

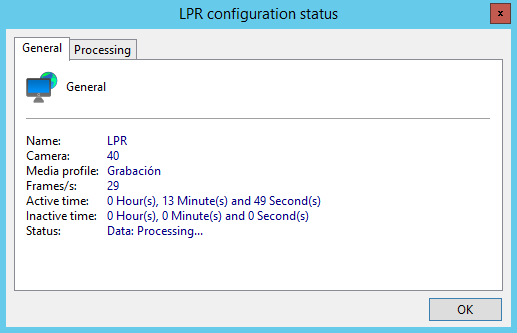

In the General tab you will have general configuration information:
•Name: Active configuration name
•Camera: Name of the camera that the engine is processing.
•Media Profile: Media Profile used in processing.
•Frames/s: Number of frames received from the camera.
•Active Time: Time the configurations has been active to date.
•Idle Time: Time the configuration has been inactive so far.
•Status: Active configuration status.

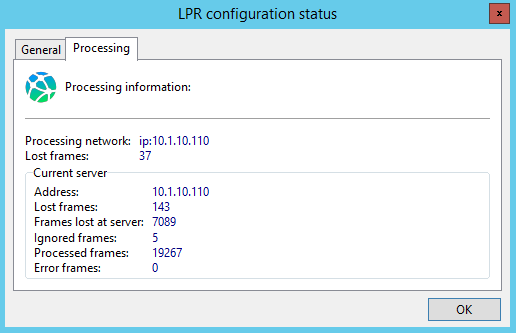

In the Processing tab you will have information about processing:
•Processing Network: Processing network name
•Lost Frames: Frames lost on the server. This is the total number of frames that were received from the camera but were not sent to the LPR server due to a connection error or LPR server unavailability.
Current server: Provides information about the current session with the LPR Server.
oAddress: Address of the LPR Server where the configuration is being processed.
oLost frames: Number of frames that were received from the camera but were not sent to this LPR Server due to server overload.
oFrames lost on the server: Frames that were sent to the LPR Server but discarded on the server due to processing errors or LPR Server overload.
oIgnored Frames: Number of frames dropped on the server before opening a session (Frames used to start the LPR session).
oFrames processed: Total Frames Processed.
oFrames with errors: Total frames that were not processed due to errors on the LPR Server.
