Licensing > How to Configure Licenses

Before starting your server, make sure the HardKey (USB Dongle) that is sold together with the software is connected to your machine correctly.

To start licensing the system, after logging in to the server, locate the item Licenses in the Server Settings Menu, as illustrated in the figure below:

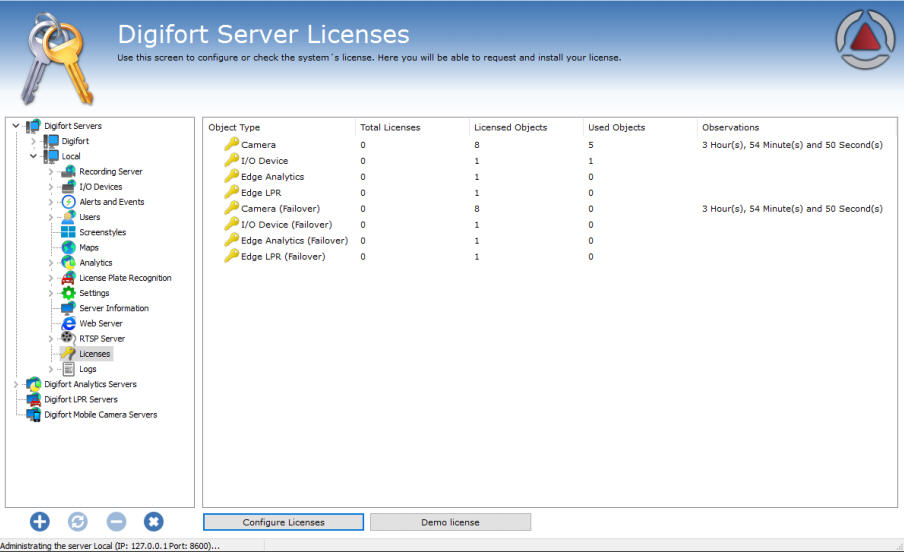

Once this is done, information on the current status of server licensing will appear on the right side, as shown in the figure below:

From this screen we can get the following information:

•Total licenses: Number of licenses installed on the server for a certain type of object.

•Licensed objects: Number of licensed objects for the object type.

•Objects Used: How many objects are currently using the licenses.

•Observations: Important license notes (If available) such as expiration time (of temporary license).

License types:

•Camera: License that allows you to record camera images.

•I/O Device: License to use the I/O devices.

•Edge Analytics: License to use embedded analytics.

•LPR on Edge: License for the use of LPR on board.

•LPR Bridge: License for the use of LPR middleware integration.

•Multi-Channel Device: License to use multi-channel devices such as NVRs

•Camera (Failover): Allows the use of the Failover feature for a certain number of cameras.

•I/O Devices (Failover): Allows the use of the Failover feature for a specified number of I/O devices.

•Edge Analytics (Failover): Allows the use of the Failover feature for a specified number of edge analytics.

•Edge LPR (Failover): Allows the use of the Failover feature for a specified number of Edge LPRs.

•Multi-Channel Device (Failover): Allows the use of Failover feature for a specified number of multi-channel devices such as NVRs

To learn more about licensing, consult your reseller.

To configure server licenses, click on Configure Licenses button. This action will run the License Manager, as shown in the figure below:

DigifortLicenseManager

This screen displays all the licenses installed on the server. To add a license, click on the Add button and to remove a license, select the desired license and click on the Remove button.

At the end of the settings, click on the OK button to close this screen.

Notes
•Each server has a unique machine-key and licenses are linked to each server's machine-key. •The server machine-key is provided via software-key (using unique identifiers of the hardware where the server is installed) or via hard-key (USB key provided with the purchase of the system). When using software-key, the machine-key may be changed when the system detects a hardware change on the server. If the software-key is being used and the machine-key changes, contact your reseller. •If the base license is removed, the pack licenses will not be loaded and will automatically disappear from the screen. Pack licenses are only loaded if the base license is installed.

Notes

•Each server has a unique machine-key and licenses are linked to each server's machine-key.

•The server machine-key is provided via software-key (using unique identifiers of the hardware where the server is installed) or via hard-key (USB key provided with the purchase of the system). When using software-key, the machine-key may be changed when the system detects a hardware change on the server. If the software-key is being used and the machine-key changes, contact your reseller.

•If the base license is removed, the pack licenses will not be loaded and will automatically disappear from the screen. Pack licenses are only loaded if the base license is installed.
